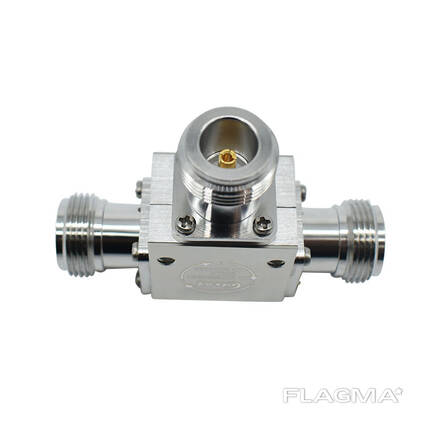

C Band 5.0 to 6.0GHz RF Coaxial Circulator with High Power 300W for Satcom
1 / 5
Agregado:
27 abril 2025, 08:33
ID: 1776101
110 $/unidad
Condiciones de suministro:
EXW
Shenzhen
Hu Kelly
shenzhen
Descripción
Model Number: UIYCC2525A5T6NF
Frequency Range: 5.0~6.0GHz
Insertion Loss: 0.4dB
Isolation: 20dB
VSWR: 1.25
Forward Power: 300W
Reverse Power: 300W
Connector type: N-F
Temperature: -20 ~ +70°C
Dimension:25*25.5*18mm
Can be dual junction or multiple for high isolation.
High RF performance, ultra-competitive price.
Military, space and commercial applications.
Custom design available upon request.
Support one year standard warranty.
Características
Código de producto
UIYCC2525A5T6NF
Estado
Nuevo
El propietario del anuncio tiene la información más reciente.
